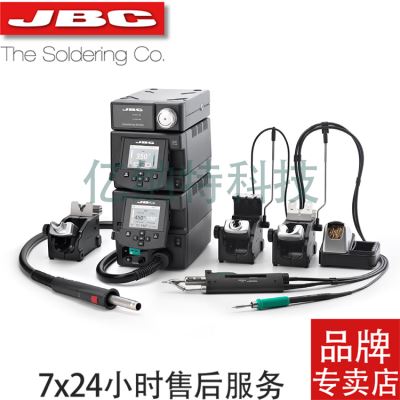

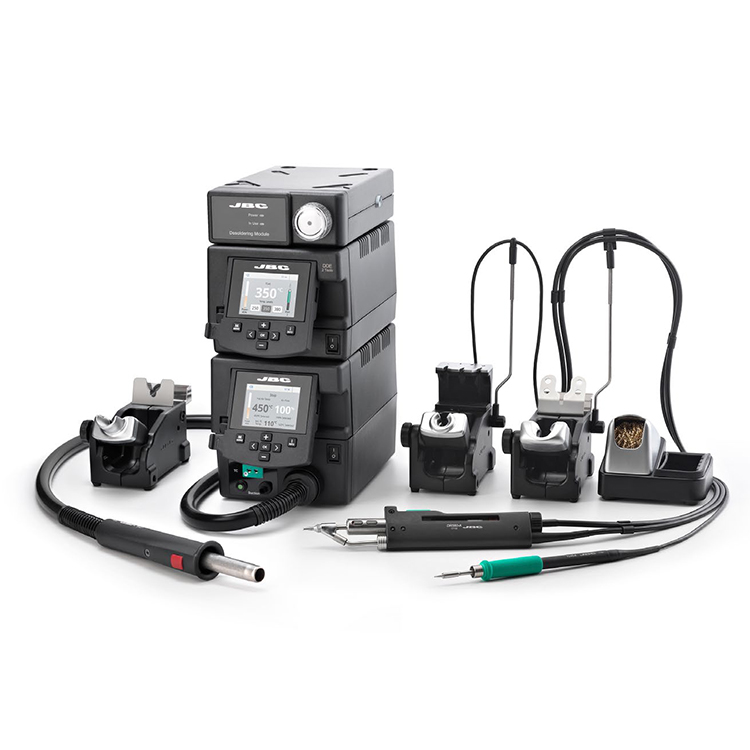

JBC原裝RMVE-2D三合一返修工作站焊臺 氣動式

產品描述:

· DDE-B 和 JTSE-A 控制主機

· AD-SD, DR-SD 和 JT-SD 工具座

· T245-A 通用型 和 DR560-A 吸錫手柄

· JT-T2A 加熱軟管套裝

· T260-A 取放筆

· C245-903 和 C245-906 烙鐵頭

· C560-004, C560-005 和 C560-013 吸錫嘴

· MVE-A 氣動拆焊模塊

· CL6166 焊嘴清潔座

· 其他配件

· * 磁吸配件盒包括3個磁吸桿，5個保護罩和 2個三腳架

使用 C245 系列烙鐵頭,

C560 吸錫嘴系列 and JN 熱風嘴

RMVE-1D / RMVE-2D / RMVE-9D

- Total weight: 16.6 kg (36.6 lb)

- Ambient Operating Temperature: 10 to 40oC (50-104oF)

JTSE-1D 120V 50/60Hz. Input fuse 8A

JTSE-2D 230V 50/60Hz. Input fuse 4A

JTSE-9D 100V 50/60Hz. Input fuse 8A

- Weight: 5.7 kg (12.6 lb)

- Dimensions: 148 x 184 x 140

- Nominal Power: 700W

- Temperature range: Room temperature / 150oC to 450°C (300oF to 840oF)

Cool mode: T Off. Used to blow air at room temperature.

- Air flow regulation: 10-50 SLPM

- Vacuum: 30% / 228 mmHg / 9 inHg

- USB interface station-PC

- P-005 Pedal connection

DDE-1B 120V 50/60Hz. Input fuse: 4A. Output: 23.5V

DDE-2B 230V 50/60Hz. Input fuse: 2A. Output: 23.5V

DDE-9B 100V 50/60Hz. Input fuse: 5A. Output: 23.5V

- Weight: 4.3 Kg (9.3 lb)

- Dimensions: 148 x 120 x 232 mm

- Output Peak Power: 150W per tool

- Temperature Range: 90-450°C (190-840 oF)

- Idle Temp. Stability (still air): ±1.5 oC (±3 oF)

- Tip to ground resistance: <2 ohms

- Tip to ground voltage: <2mV RMS

- USB-A / USB-B / Peripherals connectors

- RJ12 connector for Robot

MVE-A

- Weight: 0.9 Kg (1.9 lb)

- Dimensions: 145 x 55 x 225 mm

- Air Pressure supply range: 4-6 Bar

- Vacuum at 6 Bar: 90% / 680 mmHg / 26.8 inHg

- Flow rate: 15 SLPM

- P-005 Pedal connection
